Microcontroller Housing Design
Beyond One Tech
From 2D dimensioned CAD sketches to the final manufactured product.
What
- Designed and developed a custom housing for a microcontroller.
- Enabled the device to collect meter input signals.
- Supported wireless transmission of data to a mobile application.
How

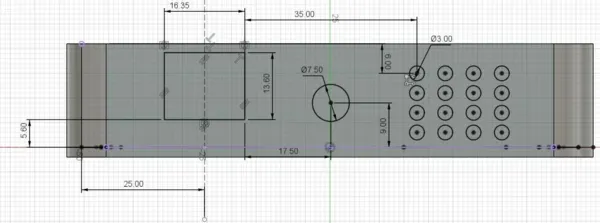

- Created enclosure layouts using precise CAD dimensions.
- Ensured proper fitment for internal electronic components.
- Collaborated with software team through prototype iterations.
Results

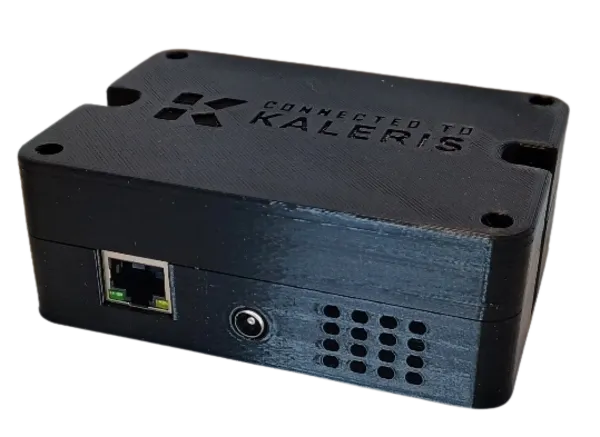

- Delivered a market-ready manufactured enclosure.
- Achieved 100% reliable data transmission during testing.
Baja SAE — Ergonomics & Chassis
UCF Baja SAE
Custom CAD modeling for driver ergonomics and steering systems.
What

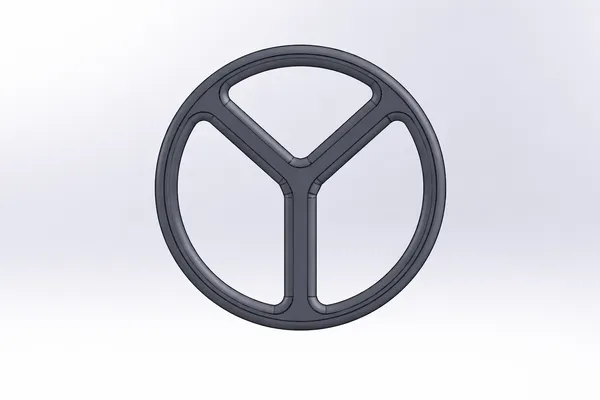

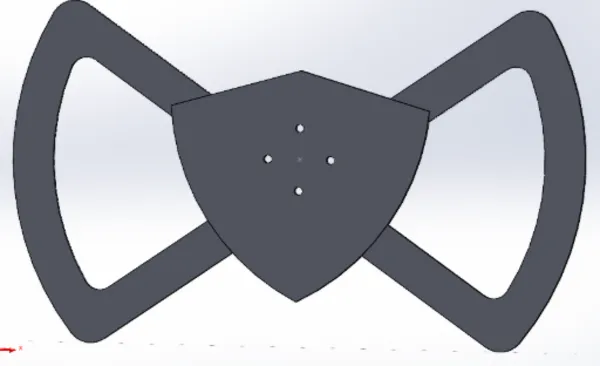

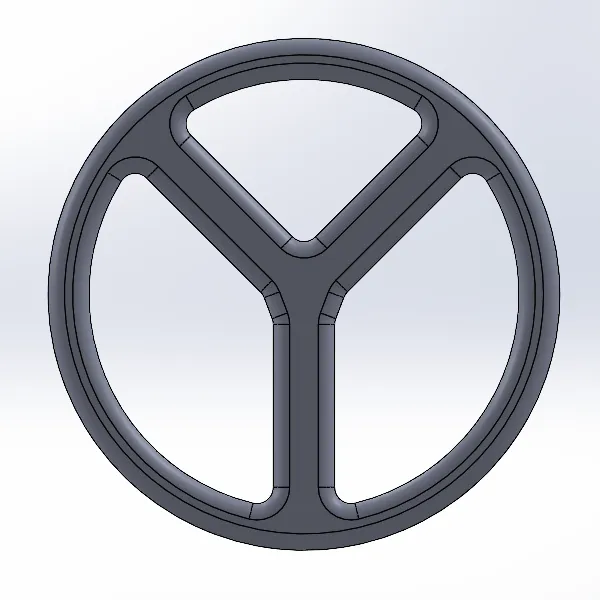

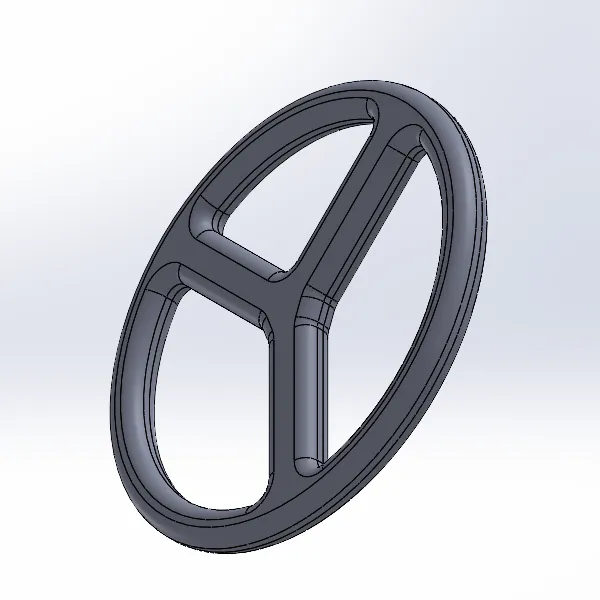

- Designed a lightweight steering wheel for a Baja SAE vehicle.
- Improved the design through iterative prototyping.
- Developed geometry suitable for off-road driving conditions.
How

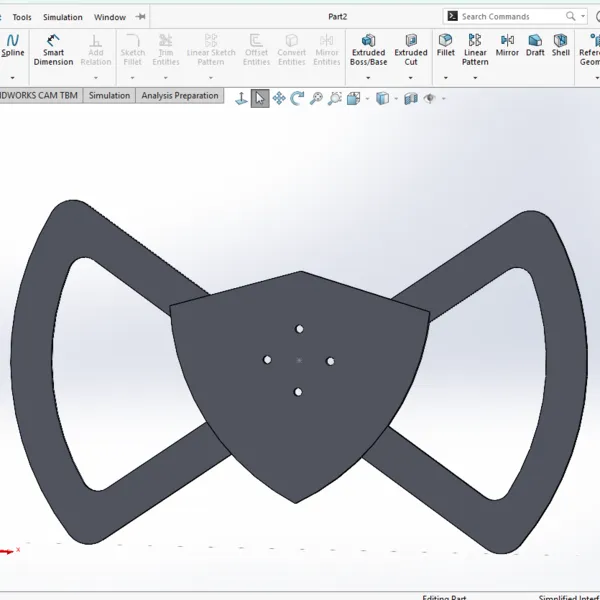

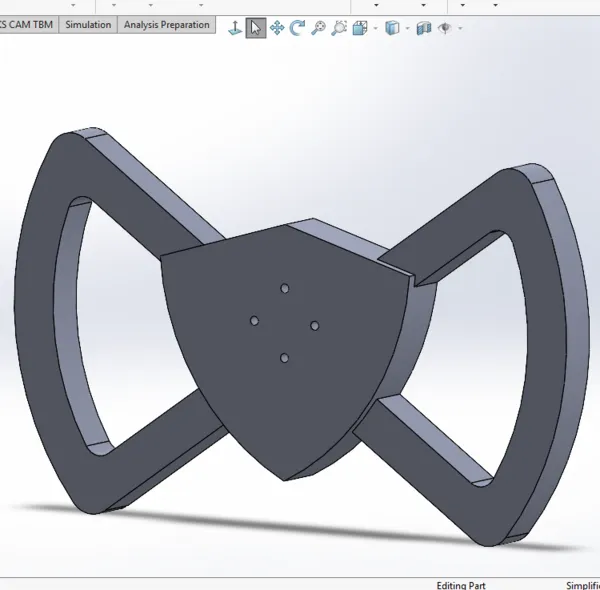

- Used SolidWorks to develop multiple CAD iterations.
- Performed FEA simulations to analyze stress distribution.
- Generated engineering drawings for manufacturing.
Results
- Optimized design for strength and manufacturability.
- FEA confirmed acceptable stress levels under loads.

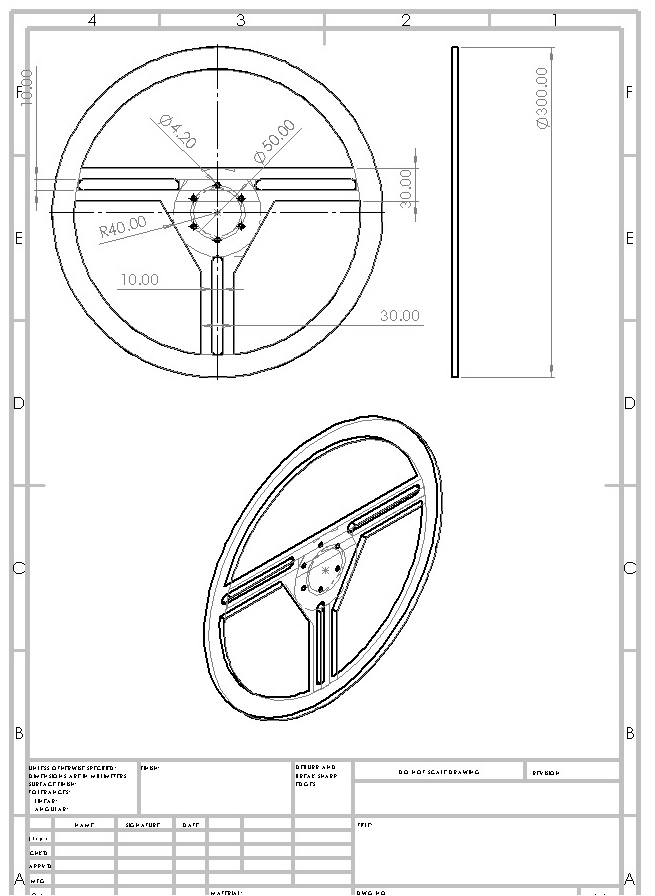

Steering Wheel Engineering Detail
Knights Experimental Rocketry (KXR)
Aerostructures
Completed experimental rocket body for IREC competition.
What

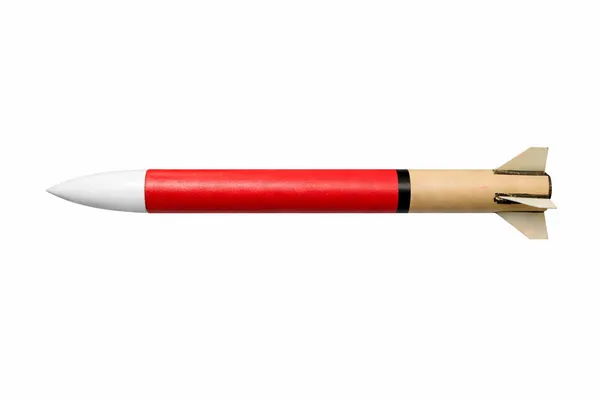

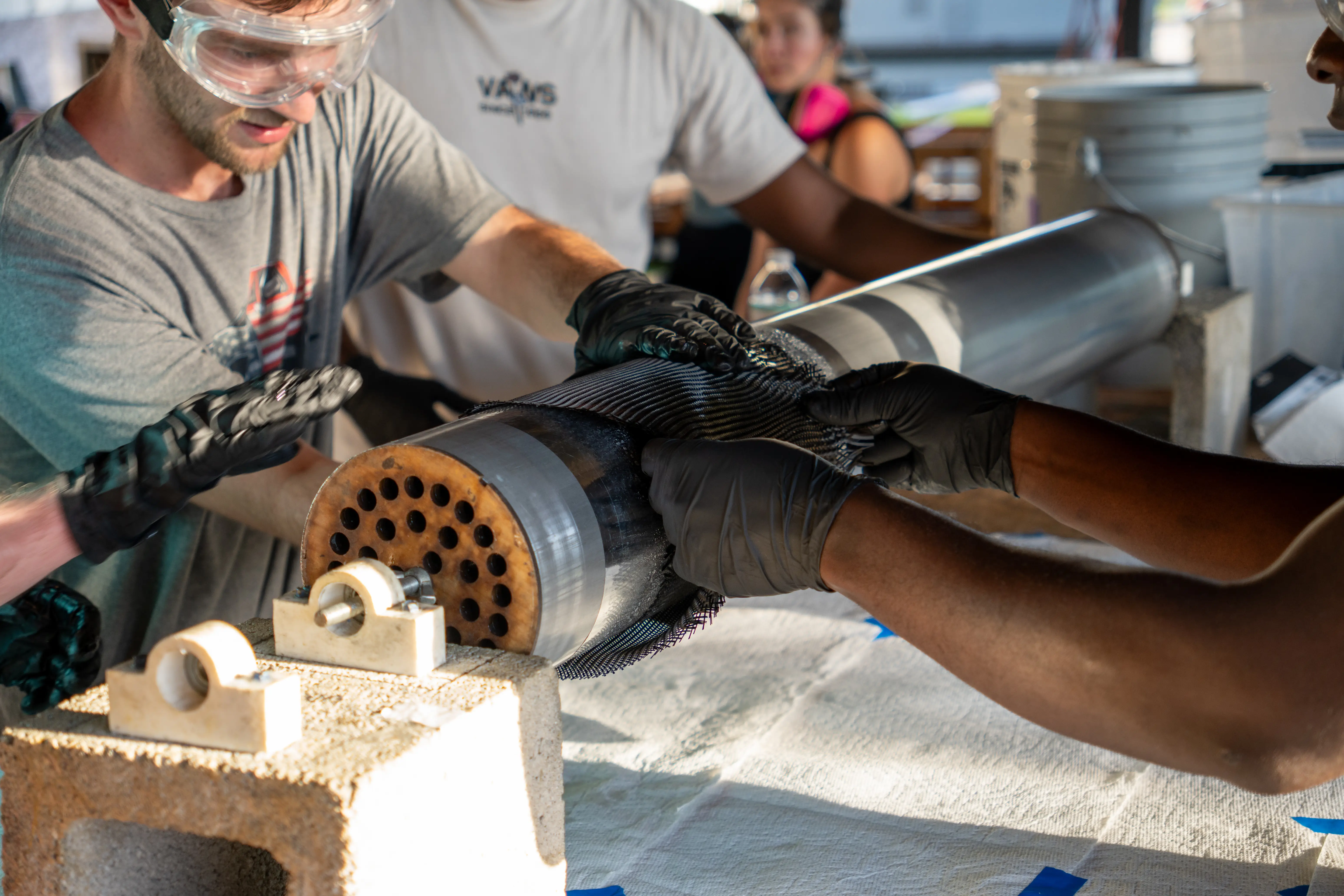

- Fabricated composite rocket bodies for IREC competition.
- Documented procedures to ensure quality control.
How

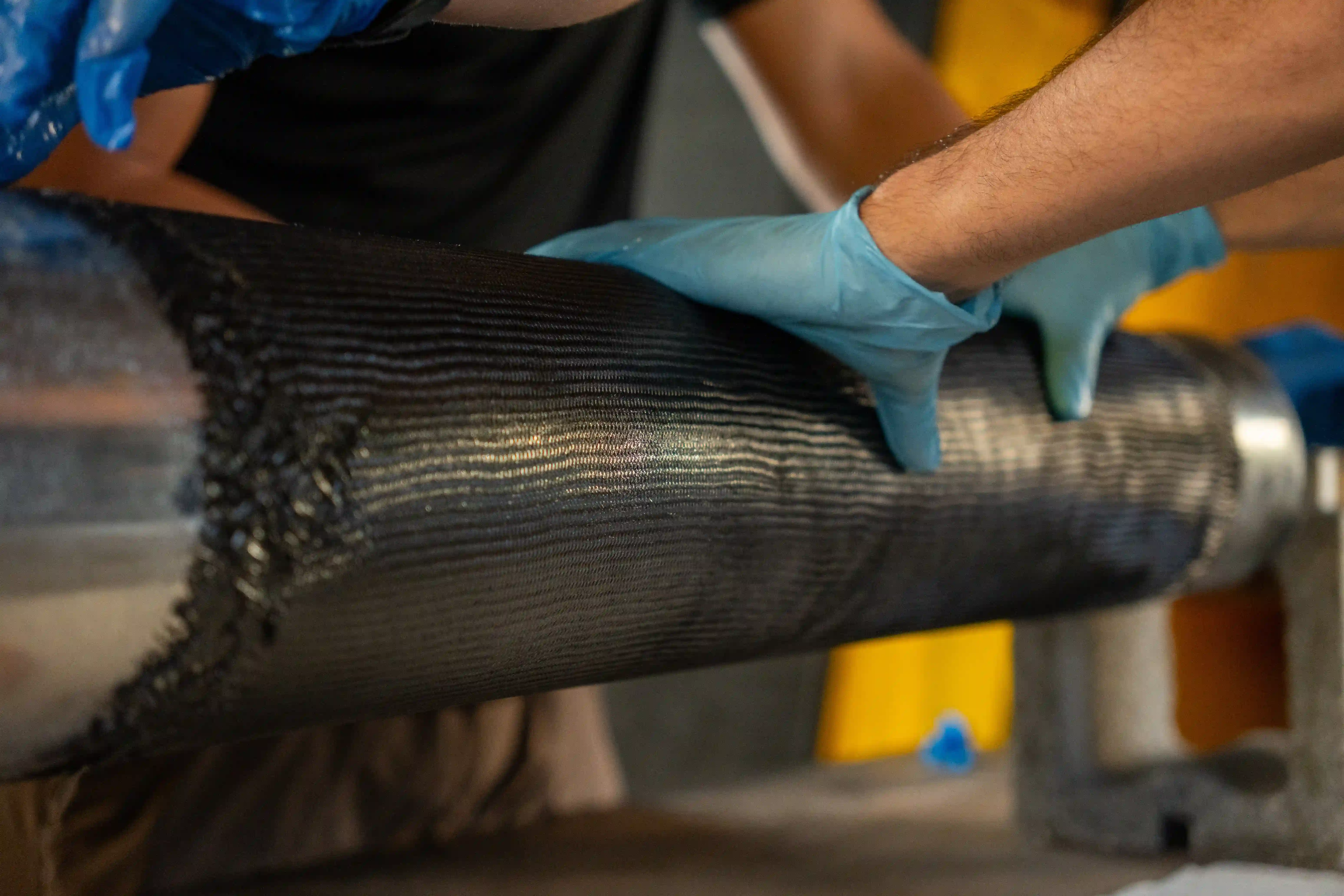

- Used advanced carbon fiber layup and epoxy curing.
- Drafted Manufacturing Process Specifications (MPS).
Results
- Ensured procedural repeatability in manufacturing.
- Maintained competition-ready standards.
